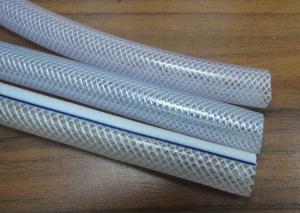

FDA food grade drinking water hose / pvc fiber reinforced hose pipe tube
Product features
FDA Grade
Suitable for use with liquids, chemicals and gases
Pneumatic and vacuum line
For use with hose barbs and clamps
Material: PVC and polyester yarn
Inner Diameter: 5mm-76mm; 1/5inch-3inch
Length: standard 150ft, 300ft, or customized
Main Color: Clear
Thickness: 2.5mm-8mm
Product description
This non-toxic, FDA grade, reinforced vinyl tubing is engineered for use and application.
It is suitable for use with a variety of liquids, chemicals, and gases. It is excellent for pneumatic and vacuum lines.
This tubing is flexible and durable; as well as corrosion and abrasion resistant. Sold in a variety of diameters and lengths.
This tubing is packaged on a spool and can be cut to desired length.
It is very flexible and can easily stand up to situations requiring rough handling while maintaining dimensional stability.
Permits installer to make smooth, tight turns. Saves time and labor.
Trimming or cutting is simple and can be clamped using hose, wire or ratcheting clamps using barbed fittings or connectors.
Specification:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length |
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/5 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 |
| 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 |
| 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 |
| 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 |
| 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 |
| 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 |
| 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 |
| 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 |
| 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 |
| 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 |
| 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 |
| 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 |
| 3 | 76 | 0.630 | 8 | 2.750 | 4 | 60 | 50 | 150 |
